Electrogalvanized sheet is a kind of metal electrochemical deposition coating product with excellent processability, good corrosion resistance and coating performance, which can meet the processing of high-quality automotive body parts.
What’s Electrogalvanized Steel Sheet?
Electrogalvanized sheet is a kind of metal electrochemical deposition coating product with excellent processability, good corrosion resistance and coating performance, which can meet the processing of high-quality automotive body parts.
Micromorphology of the surface of electrogalvanized sheet
Frictional Characteristic
Under the same lubrication conditions, the electrogalvanized sheet has better oil storage capacity due to the special surface micromorphology, so that the friction factor of the steel plate is significantly reduced, and finally plays a role in improving the forming performance of the steel plate.

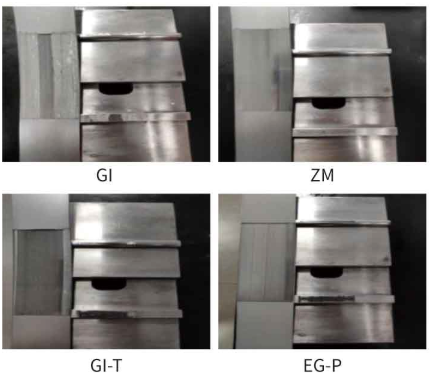

Dezincification on the surface of the specimen the residual zinc powder state of the mold

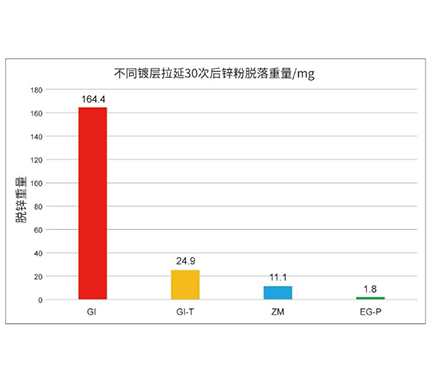

Zinc powder falling off after stretching of different coating materials

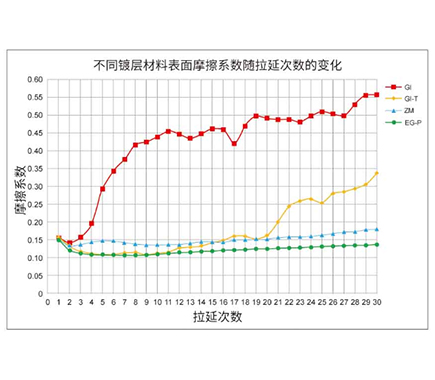

The surface friction coefficient of and different coating materials changes with the number of drawings
Product Overview
We supply a full range of electrogalvanized grades including DC01+ZE, DC03+ZE, DC04+ZE, HC340LAD+ZE, HC420LAD+ZE and HC420/780DPD+ZE automotive‑grade materials.
Compared with HDG steel, EG‑ZE steel features ultra‑fine surface finish, high dimensional accuracy and stable stamping performance. It performs well during deep drawing, bending and welding without thick zinc residue. Passivation, anti‑fingerprint and oil‑coated surface treatments are available as your requirements.
Basic Explanation
+ZE = Electro-galvanized (electro-galvanizing, EN-10152), with a thin and uniform coating. The electroplating does not alter the mechanical properties of the base material.
It is divided into 3 major categories:
1) DC01+ZE, DC03+ZE, DC04+ZE: Low-carbon IF ordinary deep drawing steel (yield ≈ 170-220 MPa, not high-strength steel)
2) HC340LAD+ZE, HC420LAD+ZE: HSLA low-alloy high-strength steel;
3) HC420/780DPD+ZE: DP duplex advanced high-strength steel (780 MPa grade).
General Product Features
Uniform Electro-galvanized (+ZE) coating
Graded performance to match different-demand scenarios
Reliable processing performance
Size & Supply Range
--Thickness: 0.6mm～3.00mm
--Width: 100 mm ~ 1850 mm
--Coil inner diameter: 508 mm / 610 mm
--Zinc coating weight: 20–120 g/m² adjustable as per customer requirements.

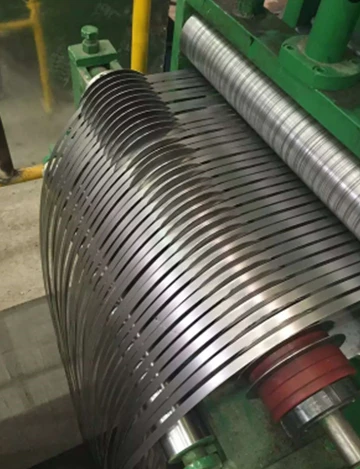

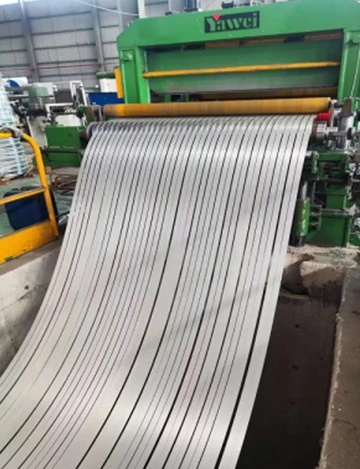

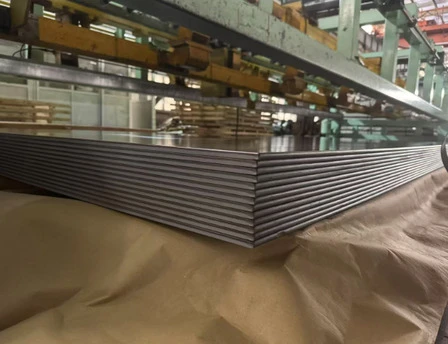

Available product forms: Electrogalvanized Steel Sheet, slit strips & cut-to-length sheets.
Contact Us

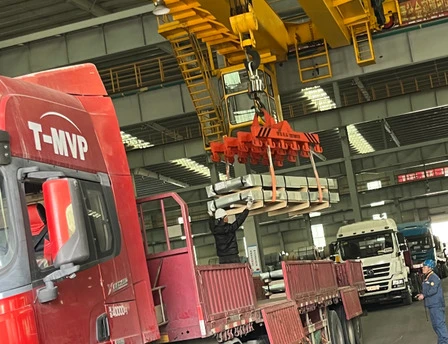

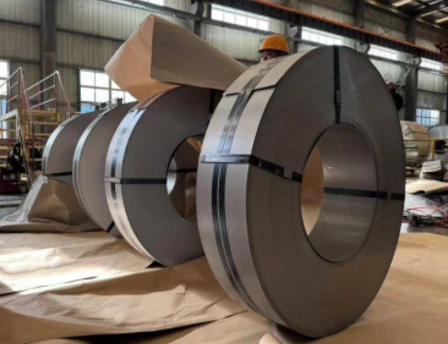

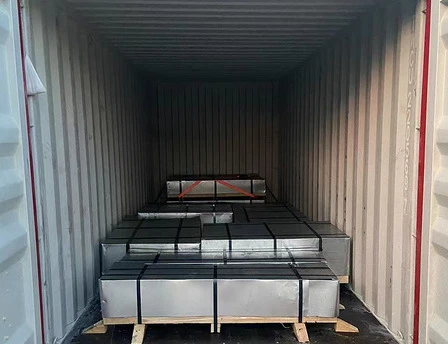

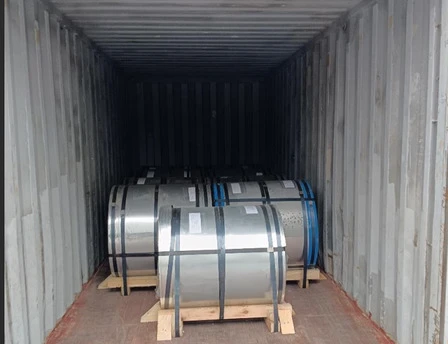

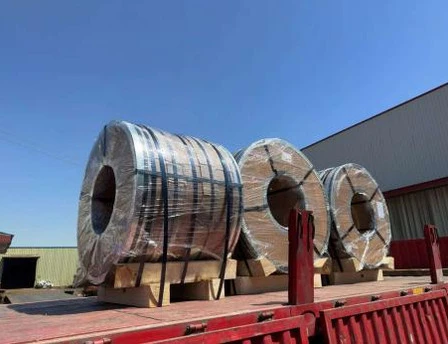

Shipment & Package
Electrogalvanized Steel Coils/Plates－ Buyer’s FAQs
Q:
What’s the minimum order quantity for Electrogalvanized Steel coils/sheets?
A:
We accept 1000KG quantity.
Q:
Do you offer wholesale pricing for Electrogalvanized Steel Coils/Plates?
A:
Yes. We provide competitive wholesale prices for Electrogalvanized Steel Coils/Plates based on thickness, width, order volume, and delivery terms. Bulk orders receive better pricing.
Q:
Are you a direct Electrogalvanized Steel Coils/Plates DC01+ZE, DC03+ZE, DC04+ZE, HC340LAD+ZE, HC420LAD+ZE and HC420/780DPD+ZE coils/plates supplier from China?
A:
Yes. We are an authorized direct distributor of BaoSteel.
Q:
What about welding and painting performance?
A:
All grades have stable spot‑welding and laser‑welding performance. The electro‑galvanized layer matches automotive electrophoresis and top‑coat process fully in line with VDA requirements.
Q:
Do you supply Electrogalvanized Steel in coil form as well?
A:
Yes. In addition to sheets, we also supply Electrogalvanized Steel in coil form, with customizable coil ID, OD, and packaging based on your requirements.
Q:
What certificates can you provide before shipment?
A:
Mill Test Certificates conforming to VDA-239-100 standard are provided.
